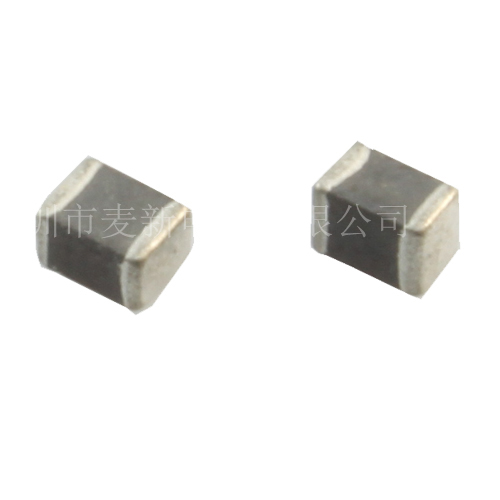

产品名称：MTB系列 产品编号：113120-613 产品型号：叠层磁珠 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MTB TYPE
0External dimensions (unit : mm)（外观尺寸
.jpg)
|
PART N0. |
A |
B |
C |
D |
L |
W |
G |
|
MTB100505 |
1.0±0.1 (0.040±0.004) |
0.5±0.1 (0.020±0.004) |
0.5±0.1 (0.020±0.004) |
0.25±0.15 (0.010±0.006) |
2.2 (0.086) |
0.7 (0.028) |
0.4 (0.016) |
|
MTB160808 |
1.6±0.2 (0.063±0.008) |
0.8±0.2 (0.031±0.008) |
0.8±0.2 (0.031±0.008) |
0.3±0.2 (0.012±0.008) |
2.8 (0.110) |
1.0 (0.039) |
0.6 (0.024) |
|
MTB201209 |
2.0±0.2 (0.079±0.008) |
1.2±0.2 (0.047±0.008) |
0.9±0.2 (0.035±0.008) |
0.5±0.3 (0.020±0.012) |
3.2 (0.126) |
1.5 (0.059) |
0.6 (0.024) |
|
MTB321611 |
3.0±0.2 (0.126±0.008) |
1.6±0.2 (0.063±0.008) |
1.1±0.2 (0.043±0.008) |
0.5±0.3 (0.020±0.012) |
4.4 (0.173) |
1.8 (0.071) |
1.2 (0.047) |
|
MTB451616 |
4.5±0.2 (0.177±0.008) |
1.6±0.2 (0.063±0.008) |
1.6±0.2 (0.063±0.008) |
0.5±0.3 (0.020±0.012) |
5.8 (0.228) |
1.8 (0.071) |
2.0 (0.079) |
0PART NUMBERING SYSTEM （品名系统）
MTB 100505 - 221 口 B
1 2 3 4 5
1 Series Name 品名 麦新磁珠料号.
2 Dimensions 尺寸 长X宽X高
3 Impedance 阻抗值 前两位为有效数字,第三位表0的个数, 600:60Ω 601 :600Ω.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 T: Tape& Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
1.Under the same size,the multilayer chip beads produce higher impedance than plug-in beads.
2.These CBG series have substantial EML.RFl suppression by simply mounting them onto PCB.
3.Suitable ElA standard in shape and dimension of chip beads;Can be mounted automatically by SMT epuipments.
0APPLICATION(应用)
Computers and peripheral devices,personal,computers,VCR and cameras
Noise suppression in digital epuipment,such as car stereo,car engines controllers and OA
electronic instruments.
COommunication equipment
用于数据传输线,信号线,电源部分及回路的抗干扰.
MTB100505/MTB160808 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB100505U300 |
30±25% |
0.30 |
500 |
|
MTB100505U600 |
60±25% |
0.40 |
200 |
|
MTB100505U121 |
120±25% |
0.50 |
200 |
|
MTB100505U221 |
220±25% |
0.70 |
100 |
|
MTB100505U301 |
300±25% |
0.80 |
100 |
|
MTB100505U451 |
450±25% |
0.90 |
100 |
|
MTB100505U601 |
600±25% |
1.00 |
100 |
|
MTB100505U102 |
1000±25% |
1.50 |
50 |
|
MTB100505Z300 |
30±25% |
0.30 |
500 |
|
MTB100505Z221 |
220±25% |
0.70 |
100 |
|
MTB100505Z601 |
600±25% |
1.00 |
100 |
|
MTB100505G600 |
60±25% |
0.40 |
200 |
|
MTB100505G301 |
300±25% |
0.80 |
100 |
|
MTB100505G451 |
450±25% |
0.90 |
100 |
|
MTB100505B300 |
30±25% |
0.40 |
200 |
|
MTB100505B121 |
120±25% |
0.70 |
100 |
|
MTB100505B301 |
300±25% |
1.00 |
100 |
|
MTB160808Z600 |
60±25% |
0.20 |
300 |
|
MTB160808Z800 |
80±25% |
0.20 |
300 |
|
MTB160808Z121 |
120±25% |
0.20 |
200 |
|
MTB160808Z221 |
220±25% |
0.20 |
200 |
|
MTB160808Z301 |
300±25% |
0.35 |
200 |
|
MTB160808Z451 |
450±25% |
0.40 |
250 |
|
MTB160808Z601 |
600±25% |
0.45 |
200 |
|
MTB160808Z102 |
1000±25% |
0.60 |
100 |
|
MTB160808U600 |
60±25% |
0.20 |
300 |
|
MTB160808U221 |
220±25% |
0.20 |
200 |
|
MTB160808U102 |
1000±25% |
0.60 |
100 |
|
MTB160808G800 |
80±25% |
0.20 |
300 |
|
MTB160808G301 |
300±25% |
0.35 |
200 |
|
MTB160808G102 |
1000±25% |
0.60 |
100 |
|
MTB160808G202 |
2000±25% |
0.80 |
50 |
|
MTB160808B400 |
40±25% |
0.30 |
300 |
|
MTB160808B181 |
180±25% |
0.35 |
200 |
|
MTB160808B301 |
300±25% |
0.45 |
200 |
|
MTB160808B601 |
600±25% |
0.65 |
200 |
|
MTB160808L150 |
15±25% |
0.30 |
200 |
|
MTB160808L300 |
30±25% |
0.30 |
200 |
|
MTB160808L600 |
60±25% |
0.30 |
200 |
|
MTB160808L121 |
120±25% |
0.40 |
150 |
MTB201209 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB201209Z100 |
10±25% |
0.15 |
600 |
|
MTB201209Z800 |
80±25% |
0.15 |
300 |
|
MTB201209Z221 |
220±25% |
0.30 |
200 |
|
MTB201209Z501 |
500±25% |
0.30 |
200 |
|
MTB201209U800 |
80±25% |
0.15 |
300 |
|
MTB201209U121 |
120±25% |
0.25 |
300 |
|
MTB201209U151 |
150±25% |
0.25 |
300 |
|
MTB201209U221 |
220±25% |
0.30 |
200 |
|
MTB201209U301 |
300±25% |
0.30 |
200 |
|
MTB201209U501 |
500±25% |
0.30 |
200 |
|
MTB201209U601 |
600±25% |
0.35 |
200 |
|
MTB201209U102 |
1000±25% |
0.45 |
200 |
|
MTB201209G221 |
220±25% |
0.30 |
200 |
|
MTB201209G601 |
600±25% |
0.35 |
200 |
|
MTB201209G152 |
1500±25% |
0.55 |
200 |
|
MTB201209G202 |
2000±25% |
0.60 |
200 |
|
MTB20120PB400 |
40±25% |
0.20 |
300 |
|
MTB20120PB121 |
120±25% |
0.25 |
200 |
|
MTB20120PB102 |
1000±25% |
0.60 |
200 |
MTB321611 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB321611Z151 |
150±25% |
0.30 |
300 |
|
MTB321611Z202 |
2000±25% (at 30MHz) |
0.60 |
100 |
|
MTB321611U151 |
150±25% |
0.30 |
300 |
|
MTB321611U301 |
300±25% |
0.30 |
300 |
|
MTB321611U601 |
600±25% |
0.30 |
200 |
|
MTB321611U122 |
1200±25% (at 30MHZ) |
0.50 |
100 |
|
MTB321611U202 |
2000±25% (at 30MHZ) |
0.60 |
100 |
|
MTB321611G301 |
300±25% |
0.30 |
300 |
|
MTB321611G601 |
600±25 |
0.30 |
200 |
MTB451616 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB451616Z151 |
150±25% |
0.30 |
300 |
|
MTB451616U600 |
60±25% |
0.10 |
500 |
