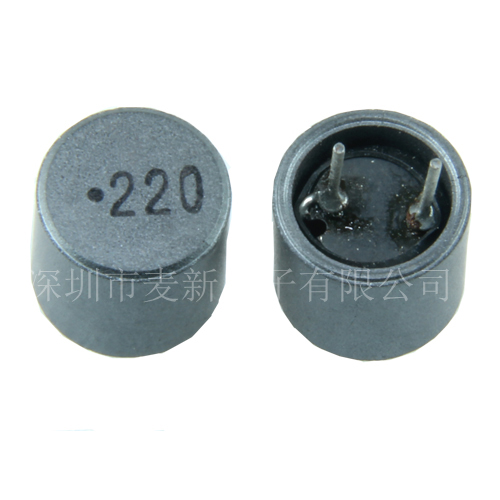

产品名称：MPDR系列 产品编号：11204-895 产品型号：工字磁罩电感 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |

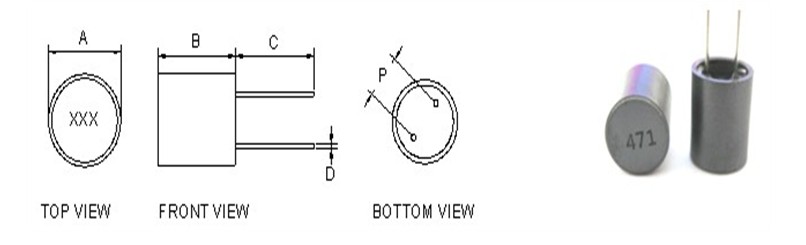

0External dimensions (unit : mm)（外观尺寸）
|
PART NO. |
A(max) |
B(max) |
C(ref) |
D |
P |
|
MPD1009R |
11.3 |
10.5 |
15.0 |
0.65±0.1 |
5.0±0.5 |
|
MPD1012R |
11 |
13 |
15.0 |
0.65±0.1 |
5.0±0.5 |
|
MPD1014R |
10.8 |
15 |
15.0 |
0.65±0.1 |
5.0±0.5 |
|
MPD1214R |
13.0 |
15 |
15.0 |
0.65±0.1 |
5.0±0.5 |
0PART NUMBERING SYSTEM （品名系统）
M PD 1009 R - 102 M - B
1 2 3 4 5
1 Series Name 品名 麦新电感品名.
2 Dimensions 尺寸 外围X高度,带磁罩
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 102:1000 uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 C: Tape& Reel (卷装) B: In Bulk (散装/袋装)
FEATURES （特性）
Magnetically shielded construction
闭磁路构造设计
Ideal for use as an inductor for high current power supplies in all types of electronic instruments.
各种电子仪器电源回路应用
0APPLICATION（用途）
Notebook, Inkjet printer, Copying machine , Display monitor ,Cellular phone,ADSL modem ,Gaming machine ,color TV, Video tape recorder ,Video camera ,Microwave oven ,lighting andcar electronics.
用于笔记本电脑，喷墨打印机，复印机、显示监视器、电话、宽频数据机、游戏机、彩色电视机、录放影机、摄影机、 微波炉、照明设备、汽车电子产品等。
|
STAMP |
Inductance (uH) 电感值 |
MPD1009R |
MPD1012R |
MPD1014R |
MPD1214R |
||||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
100 |
10 |
0.018 |
1000 |
0.027 |
3300 |
0.029 |
4500 |
0.015 |
4000 |
|
150 |
15 |
0.020 |
810 |
0.033 |
2800 |
0.040 |
3650 |
0.017 |
3800 |
|
180 |
18 |
0.023 |
765 |
0.037 |
2500 |
0.054 |
3200 |
0.020 |
3600 |
|
220 |
22 |
0.025 |
630 |
0.045 |
2250 |
0.060 |
3200 |
0.021 |
3400 |
|
270 |
27 |
0.027 |
495 |
0.051 |
2000 |
0.066 |
2700 |
0.023 |
3200 |
|
330 |
33 |
0.034 |
470 |
0.067 |
1870 |
0.070 |
2400 |
0.024 |
3000 |
|
390 |
39 |
0.039 |
390 |
0.076 |
1680 |
0.078 |
2250 |
0.027 |
2600 |
|
470 |
47 |
0.047 |
370 |
0.085 |
1500 |
0.086 |
2100 |
0.032 |
2200 |
|
560 |
56 |
0.049 |
325 |
0.094 |
1440 |
0.094 |
1900 |
0.034 |
2000 |
|
680 |
68 |
0.056 |
290 |
0.103 |
1280 |
0.102 |
1750 |
0.060 |
1800 |
|
820 |
82 |
0.061 |
270 |
0.125 |
1200 |
0.124 |
1650 |
0.070 |
1700 |
|
101 |
100 |
0.069 |
230 |
0.170 |
1110 |
0.158 |
1450 |
0.090 |
1500 |
|
151 |
150 |
0.095 |
200 |
0.210 |
840 |
0.248 |
1180 |
0.11 |
1250 |
|
181 |
180 |
0.105 |
175 |
0.235 |
810 |
0.345 |
1080 |
0.12 |
1120 |
|
221 |
220 |
0.115 |
160 |
0.300 |
725 |
0.440 |
920 |
0.14 |
950 |
|
271 |
270 |
0.150 |
140 |
0.420 |
640 |
0.488 |
870 |
0.16 |
900 |
|
331 |
330 |
0.195 |
115 |
0.475 |
590 |
0.650 |
800 |
0.17 |
850 |
|
391 |
390 |
0.210 |
108 |
0.600 |
540 |
0.835 |
740 |
0.32 |
760 |
|
471 |
470 |
0.250 |
104 |
0.668 |
500 |
0.902 |
670 |
0.35 |
700 |
|
561 |
560 |
0.280 |
95 |
0.855 |
435 |
1.21 |
610 |
0.39 |
670 |
|
681 |
680 |
0.365 |
78 |
1.08 |
390 |
1.33 |
555 |
0.44 |
620 |
|
821 |
820 |
0.425 |
75 |
1.20 |
370 |
1.45 |
510 |
0.48 |
580 |
|
102 |
1000 |
0.470 |
68 |
1.38 |
332 |
2.05 |
468 |
0.53 |
540 |
|
122 |
1200 |
1.000 |
50 |
3.70 |
52 |
2.25 |
435 |
0.66 |
500 |
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH 以上±10%；(包含 10uH)
Isat:The current when the inductance becomes 10% lower than its nominal value.(ta=20℃)
|
STAMP |
Inductance (mH) 电感值 |
MPD1009R |
MPD1012R |
MPD1014R |
MPD1214R |
||||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
152 |
1.5 |
5.9 |
46 |
4.0 |
47 |
2.50 |
375 |
0.86 |
420 |
|
182 |
1.8 |
6.6 |
41 |
4.5 |
44 |
2.80 |
350 |
0.95 |
380 |
|
222 |
2.2 |
7.8 |
37 |
5.2 |
41 |
3.90 |
300 |
1.07 |
340 |
|
272 |
2.7 |
9.0 |
34 |
5.8 |
37 |
4.28 |
275 |
|
|
|
332 |
3.3 |
10.0 |
30 |
6.1 |
33 |
7.68 |
260 |
|
|
|
392 |
3.9 |
11.5 |
28 |
7.2 |
30 |
8.35 |
235 |
|
|
|
472 |
4.7 |
12.6 |
25 |
7.5 |
28 |
9.10 |
215 |
|
|
|
562 |
5.6 |
17.2 |
23 |
8.4 |
25 |
10.2 |
195 |
|
|
|
682 |
6.8 |
19.0 |
20 |
9.7 |
23 |
15.4 |
180 |
|
|
|
822 |
8.2 |
22.0 |
18 |
10.4 |
21 |
16.9 |
160 |
|
|
|
103 |
10 |
25.0 |
15 |
12.1 |
18 |
23.5 |
150 |
|
|
|
123 |
12 |
28.0 |
14 |
13.0 |
17 |
|
|
|
|
|
153 |
15 |
33.0 |
12 |
15.0 |
15 |
|
|
|
|
|
183 |
18 |
42.0 |
11 |
17.0 |
13 |
|
|
|
|
|
223 |
22 |
48.0 |
10 |
19.5 |
11 |
|
|
|
|
|
273 |
27 |
56.0 |
10 |
22.0 |
10 |
|
|
|
|
|
333 |
33 |
64.0 |
9 |
26.0 |
9 |
|
|
|
|
|
393 |
39 |
72.0 |
8 |
45.0 |
8 |
|
|
|
|
|
473 |
47 |
82.0 |
8 |
52.0 |
8 |
|
|
|
|
|
563 |
56 |
|
|
58.0 |
7 |
|
|
|
|
|
683 |
68 |
|
|
67.0 |
6 |
|
|
|
|
|
823 |
82 |
|
|
71.0 |
5 |
|
|
|
|
|
104 |
100 |
|
|
82.0 |
5 |
|
|
|
|
|
124 |
120 |
|
|
97.0 |
5 |
|
|
|
|
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH 以上±10%；(包含 10uH)
Isat:The current when the inductance becomes 10% lower than its nominal value.(ta=20℃)
